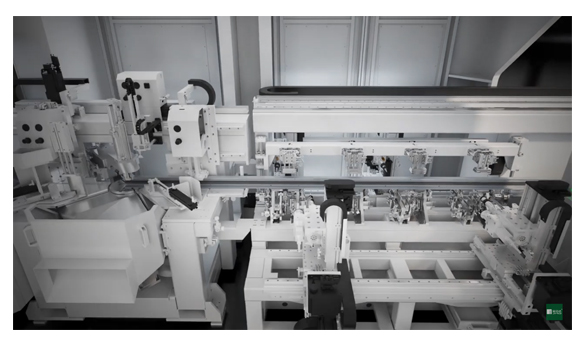

Double-Station Aluminum Machining Center
Double-Station Aluminum Machining Center
This machine can cut the aluminum window profiles and some industrial aluminum profiles and drill, mill holes on four-side of the profiles. The machine can seamlessly connect with a variety of window design software to meet the needs of different window manufacturers
Aluminum CNC Profile Machining Center, CNC Maching Center for Aluminum Windows
Machine parameters:
- Power supply: 380V, 3phase-4wire, 50Hz
- Drilling or milling spindle rotating speed: 9000r/min
- Drilling or milling spindle power: 3.0kW
- Cutting spindle rotating speed: 2860R/min
- Cutting spindle power: 3.0kW
- Manipulator speed: 0-120 meters/min
- Milling feed speed: 0-15 meters/min
- Cutting feed speed: 0-20 meters/min
- Working air pressure: 0.5-0.8MPa
- Air consumption: 200L/min
- Total power: 55KW+dust collector 3.7kW
- Total weight: 15 tons
Configuration
- Motion control system: INVOVANCE (servo, motion controller, inverter)
- Pneumatic component: AirTAC
- Low-voltage electrical: Siemens, Schneider, Omron, Honeywell
- Linear guide rail: HIWIN
- Rack & Gear: YYC
- Ball Screw: TBI
- Precision planetary deceleration: DESBORE
- Spindle Motor: Rundawords
- Flexible wire and cable: Echu
- Lubrication System: BAOTN
- Silent drag chain system: HUASITECH
