Arbitrary Angle Cutting Center
CNC Aluminum Profile Machining and Cutting Center
The arbitrary Angle CNC cutting center is a new generation of CNC cutting products developed by our company, mainly for the cutting of aluminum door and window profile frame profile, fan profile and elevator profile, and can also complete the cutting and processing of some industrial aluminum profiles.
Aluminum Profile CNC Cutting Center, Window Profile CNC Machining and Cutting Center

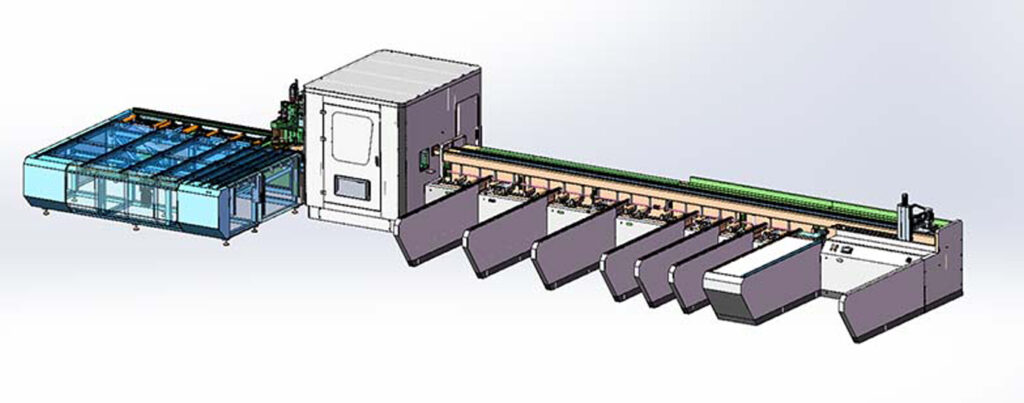

- LJG1-CNC-500X6500 is a new generation of CNC cutting center developed by JMD Company. It is mainly designed to cut thermal break aluminum doors and window profiles such as frames, sashes and mullions. It can also be used to cut some industrial aluminum profiles. The cutting host is equipped with a single saw blade which rotates left and right alternately to complete the profile cutting. The saw blade is controlled by the cam roller rotating platform mechanism which is driven by the servo motor . The saw blade cutting lifting mechanism adopts a 45°sawing swing arm structure.
- The machine supports the batch cutting of frame, sash, mullion or fly screen frame profiles; it can also support mixed cuts of multiple profiles (frame, sash, mullion or fly screen frame profiles). Cutting mode can be 45° cutting at both ends of profiles, 90° cutting at both ends of profiles or one end 45° cutting and the other end 90° cutting. To cut some industrial aluminum profiles, cutting angle can be arbitrary between±45° at both ends.
- The online printing and labeling mechanism will print the label and automatically paste it on the profile surface after the profile is cut which makes it convenient to do the profile classification and data management in the later production.
- The cutting center must have window and door design software for data support. The software needs to supplies the data of cutting length and cutting angle to the machine for transmission positioning and angle positioning.
